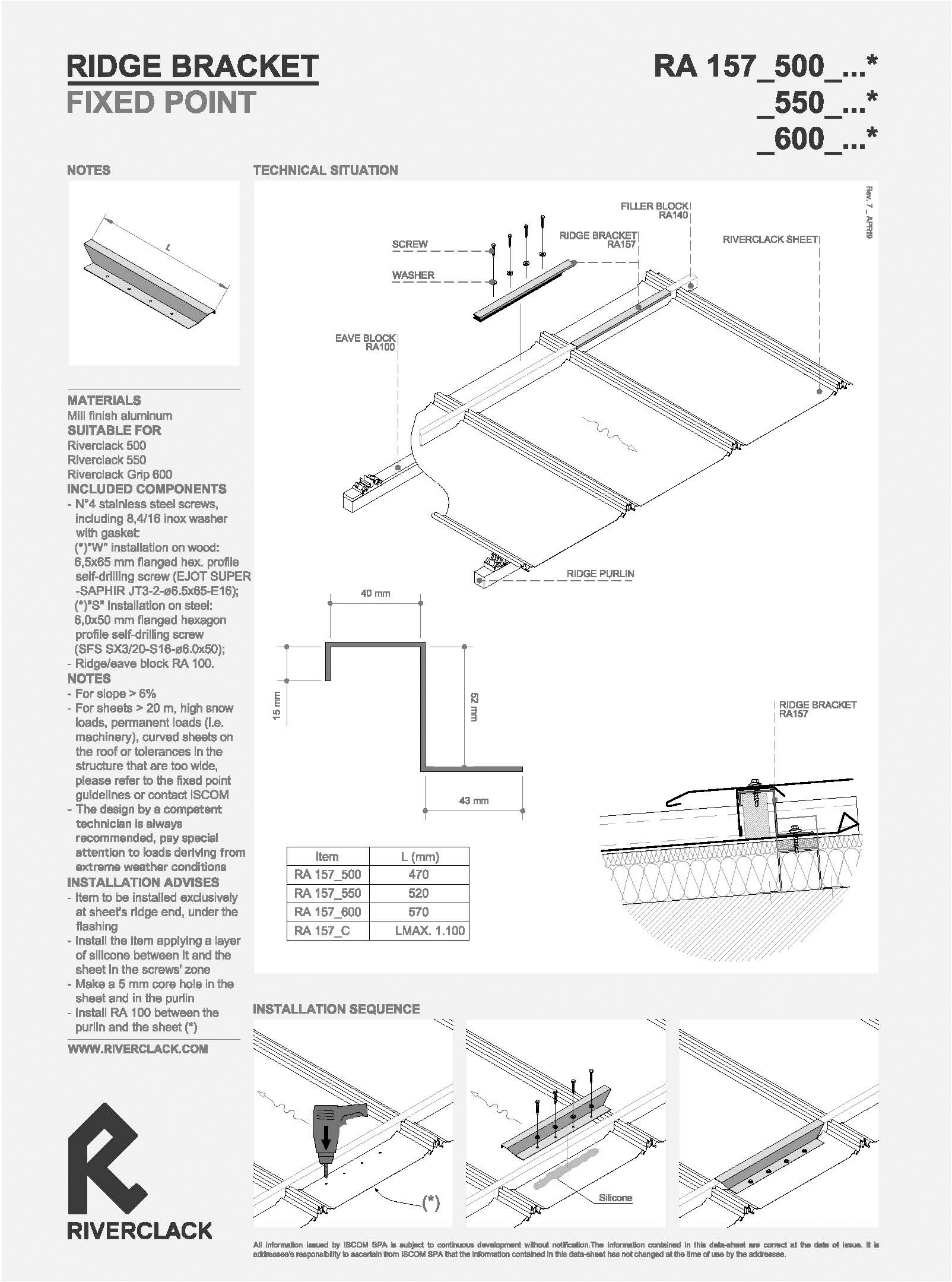

N° 4 stainless steel screws, including 8,4/16 inox washer with gasket:
(*)"W" installation on wood: 6,5x65 mm flanged hex. profile self-drilling screw (EJOT SUPER -SAPHIR JT3-2-06.5x65-E16)
(*)"S" installation on steel: 6,0x50 mm flanged hexagon profile self-drilling screw (SFS SX3/20-S16-06.0x50)
Ridge/eave block RA 100
NOTES
For > 6% slopes
For > 20 m sheets, heavy snow loads, permanent loads (i.e. machinery), curved sheets on the roof or tolerances in the structure that are too wide, please refer to the fixed point guidelines or contact ISCOM
It is always highly recommended that the design is carried out by a competent technician, beware of loads caused by extreme weather conditions
INSTALLATION ADVICE
The item must be installed exclusively at the end of the sheet, under the flashing
Installation is performed by applying a layer of silicone between the attachment and the sheet in the screw area
Drill a 5 mm core hole in the sheet and in the purlin
RA is to be installed 100 between the purlin and the sheet (*)
