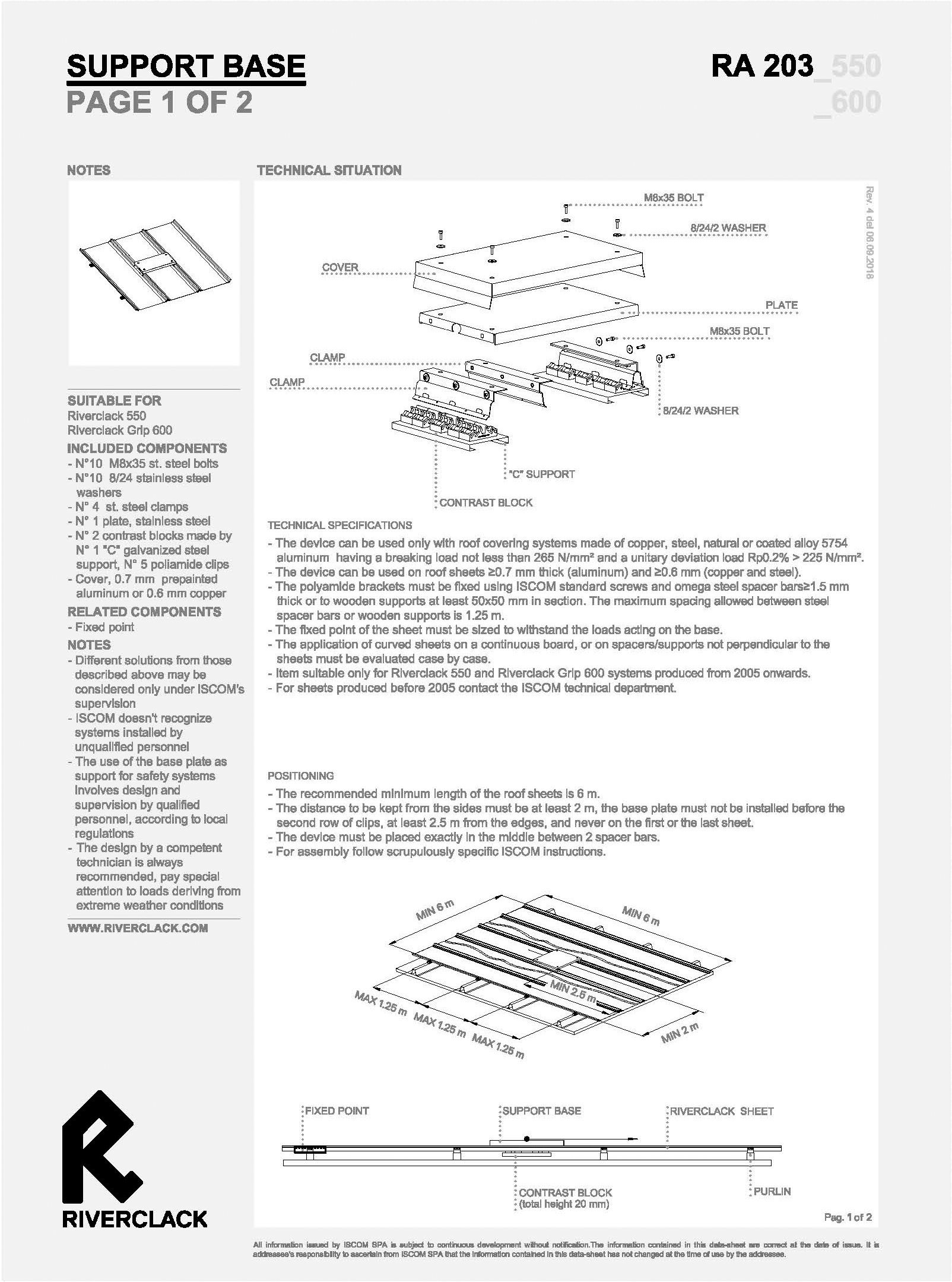

RA203

SUITABLE FOR

• Riverclack® 550
• Riverclack® 600

INCLUDED COMPONENTS

• N° 10 M8 x 35 stainless steel bolts
• N° 10 8/24 stainless steel washers
• N° 4 stainless steel clamps
• N° 1 plate, stainless steel
• N° 2 central blocks made by N° 1 "C" galvanized steel support, N° 5 polyamide clips
• Cover, 0.7 mm pre-painted aluminum or 0.6 mm copper

RELATED COMPONENTS

• Fixed point

NOTES

• Different solutions from those described above may be considered only under ISCOM's supervision
• ISCOM doesn't recognize systems installed by unqualified personnel
• Using the base plate as support for safety systems entails design and supervision by qualified personnel, according to local regulations
• It is always highly recommended that the design is carried out by a competent technician, beware of loads caused by extreme weather conditions
