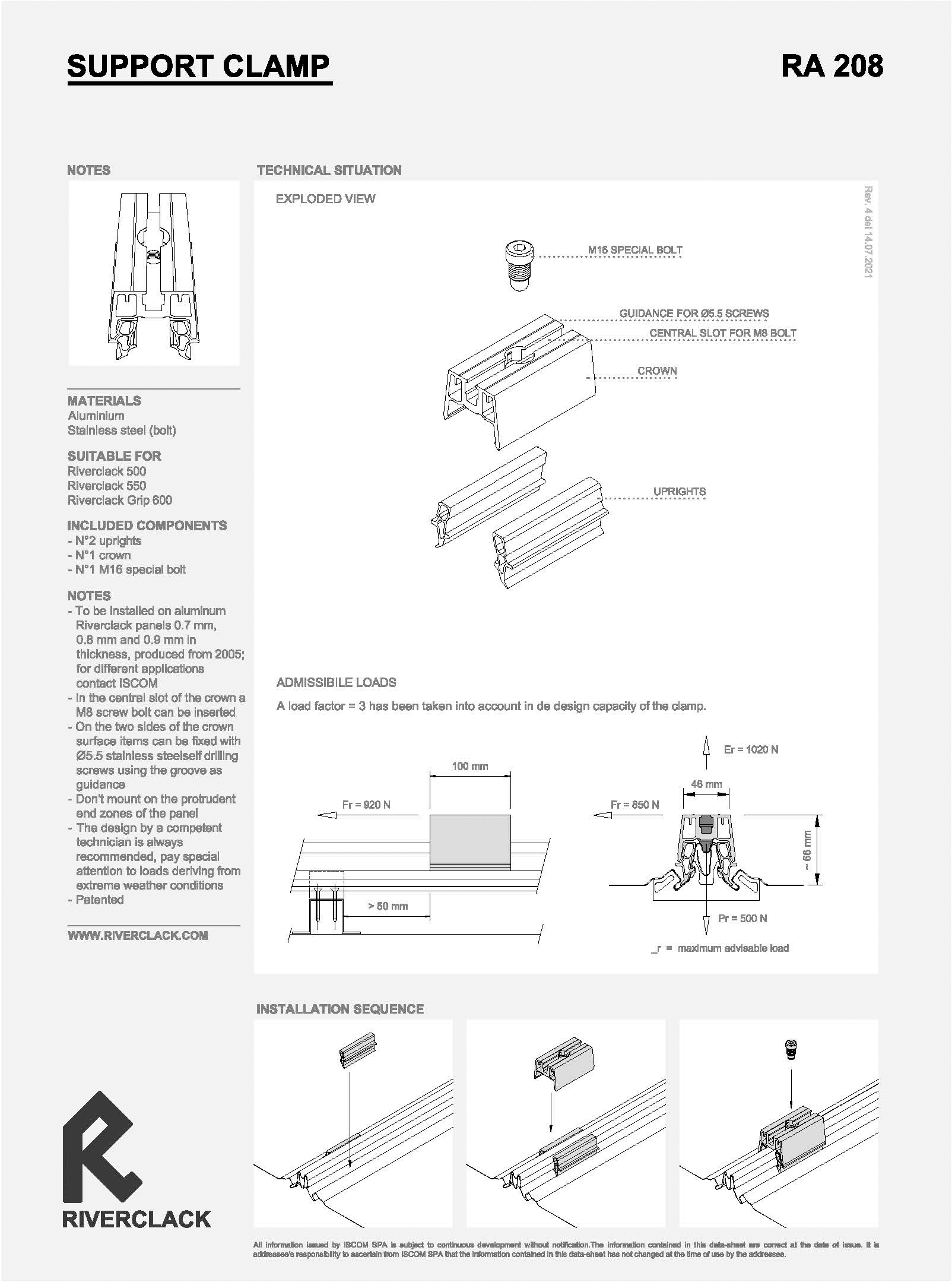

RA208

MATERIALS

• Aluminum
• Stainless steel (bolt)

SUITABLE FOR

• Riverclack® 500
• Riverclack® 550
• Riverclack® 600

INCLUDED COMPONENTS

• N° 2 uprights
• N° 1 crown
• N° 1 M16 special bolt

NOTES

• The attachment can be installed on 0,7 mm and 0,8 mm thick Riverclack® aluminum panels, which have been produced since 2005; for other kinds of application contact ISCOM
• In the central slot of the crown a M8 screw bolt can be inserted
• On the two sides of the crown surface items can be fixed with Ø5.5 stainless steel self-drilling screws using the groove as guidance
• The attachment can't be mounted on the protruding end zones of the panel
• It is always highly recommended that the design is carried out by a competent technician, beware of loads caused by extreme weather conditions
• Patented
