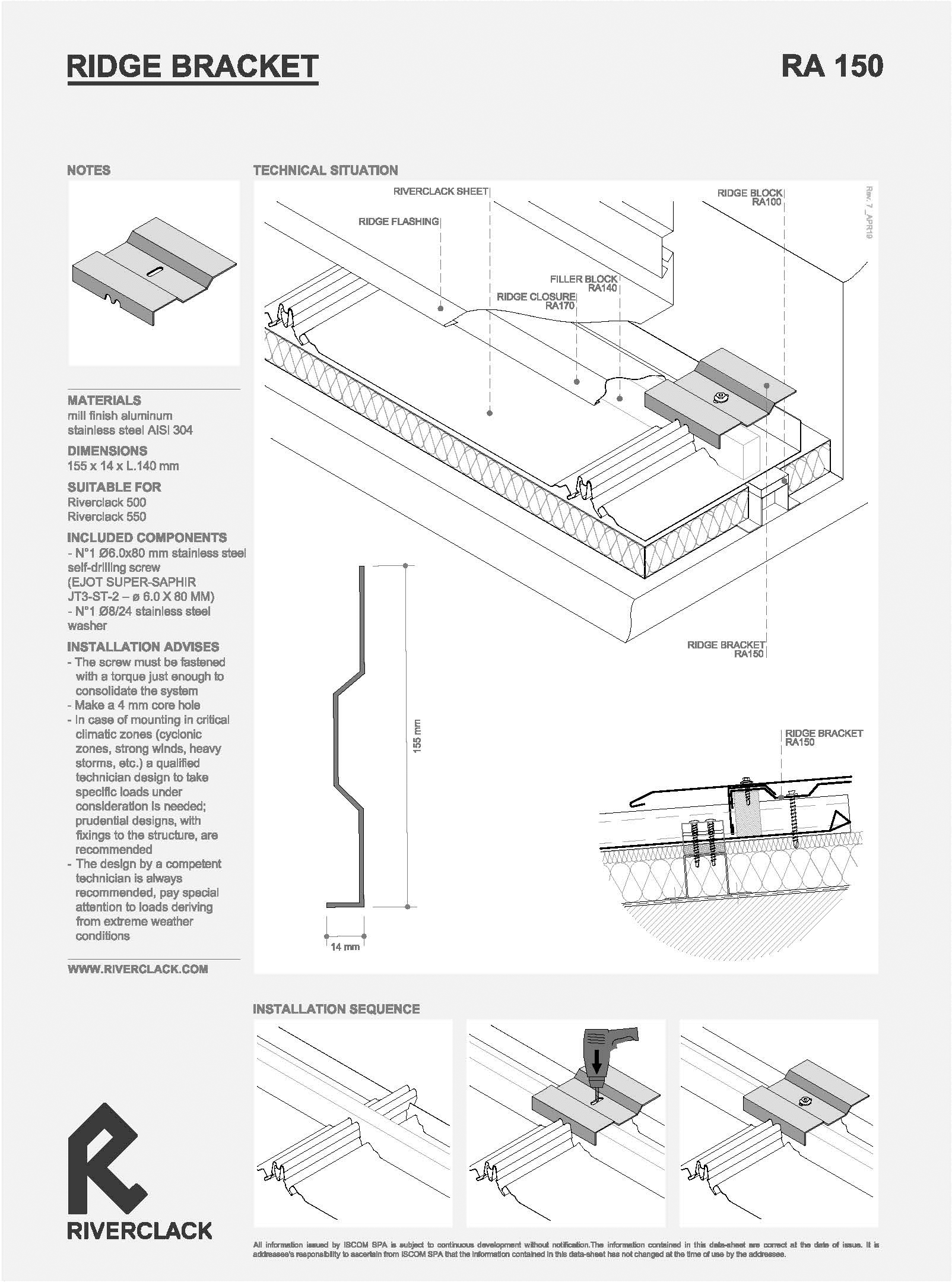

RA150

MATERIALS

• Mill finish aluminum
• Stainless steel AISI 304

DIMENSIONS

• 155 x 14 x L.140 mm

SUITABLE FOR

• Riverclack® 500
• Riverclack® 550

INCLUDED COMPONENTS

• N° 1 Ø6.0x80 mm stainless steel self-drilling screw (EJOT SUPER-SAPHIR JT3-ST-2 - Ø6.0 X 80 MM)
• N° 1 Ø8/24 stainless steel washer

INSTALLATION ADVICE

• The screw must be fastened with a torque just enough to strengthen the system
• Drill a 4 mm core hole
• When installing in critical climatic zones (cyclonic zones, strong winds, heavy storms, etc.), design should be entrusted to a qualified technician in order to assess specific loads; it is recommended to opt for prudential solutions, with structure fixings
• It is always highly recommended that the design is carried out by a competent technician, beware of loads caused by extreme weather conditions
