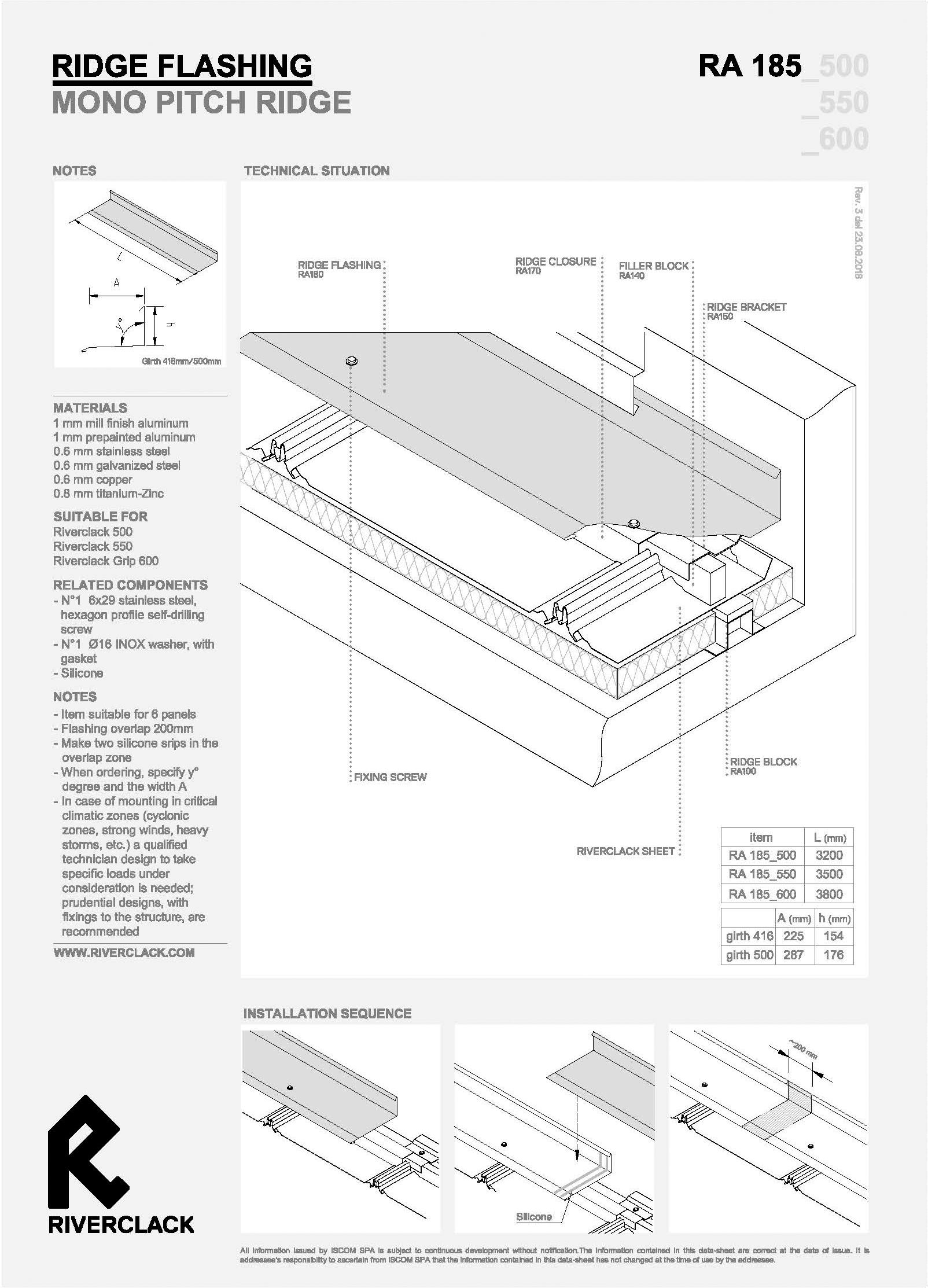

RA185

MATERIALS

• 1 mm mill finish aluminum
• 1 mm pre-painted aluminum
• 0.6 mm stainless steel
• 0.6 mm galvanized steel
• 0.6 mm copper
• 0.8 mm titanium-Zinc

SUITABLE FOR

• Riverclack® 500
• Riverclack® 550
• Riverclack® 600

RELATED COMPONENTS

• N° 1 6 x 29 stainless steel, hexagon profile self-drilling screw
• N°1 Ø16 INOX washer, with gasket
• Silicone

NOTES

• The attachment can cover 6 full panels
• Flashing overlap: 200 mm
• Distribute two silicone strips in the overlap zone
• When ordering, specify y° degree and the width A
• When installing in critical climatic zones (cyclonic zones, strong winds, heavy storms, etc.), design should be entrusted to a qualified technician in order to assess specific loads; it is recommended to opt for prudential solutions, with structure fixings
