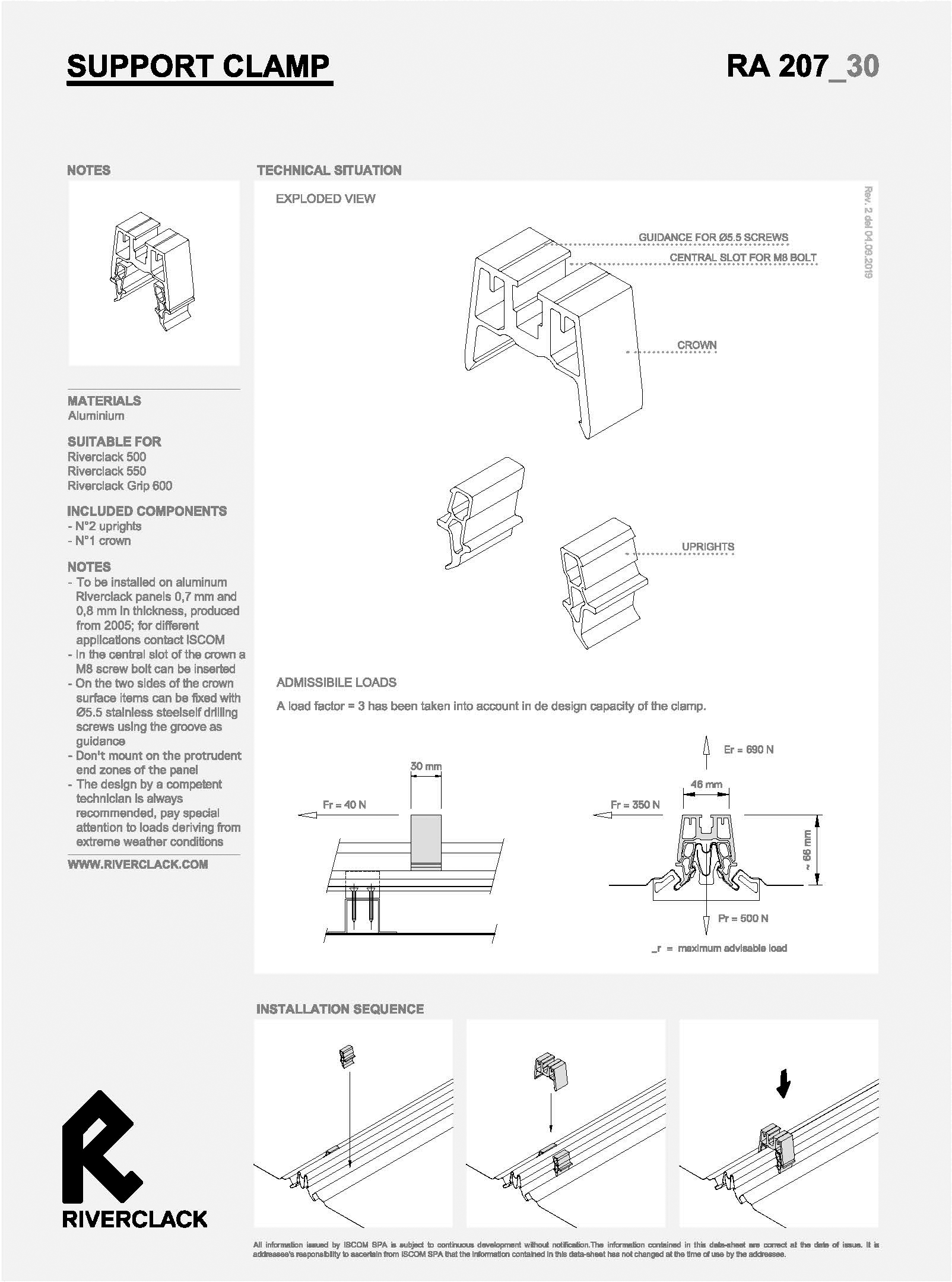

The attachment shall be installed on 0,7 mm and 0,8 mm thick Riverclack® aluminum panels, which have been produced since 2005; for other kinds of application contact ISCOM
In the central slot of the crown, a M8 screw bolt can be inserted
On the two upper surfaces on the sides of the crown, the attachments can be fixed with Ø5.5 stainless steel self-drilling screws using the groove as guidance
The attachment can't be mounted on the protruding end zones of the panel
It is always highly recommended that the design is carried out by a competent technician, beware of loads caused by extreme weather conditions
