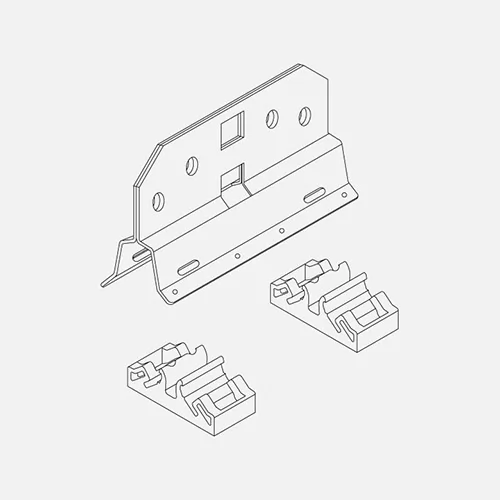

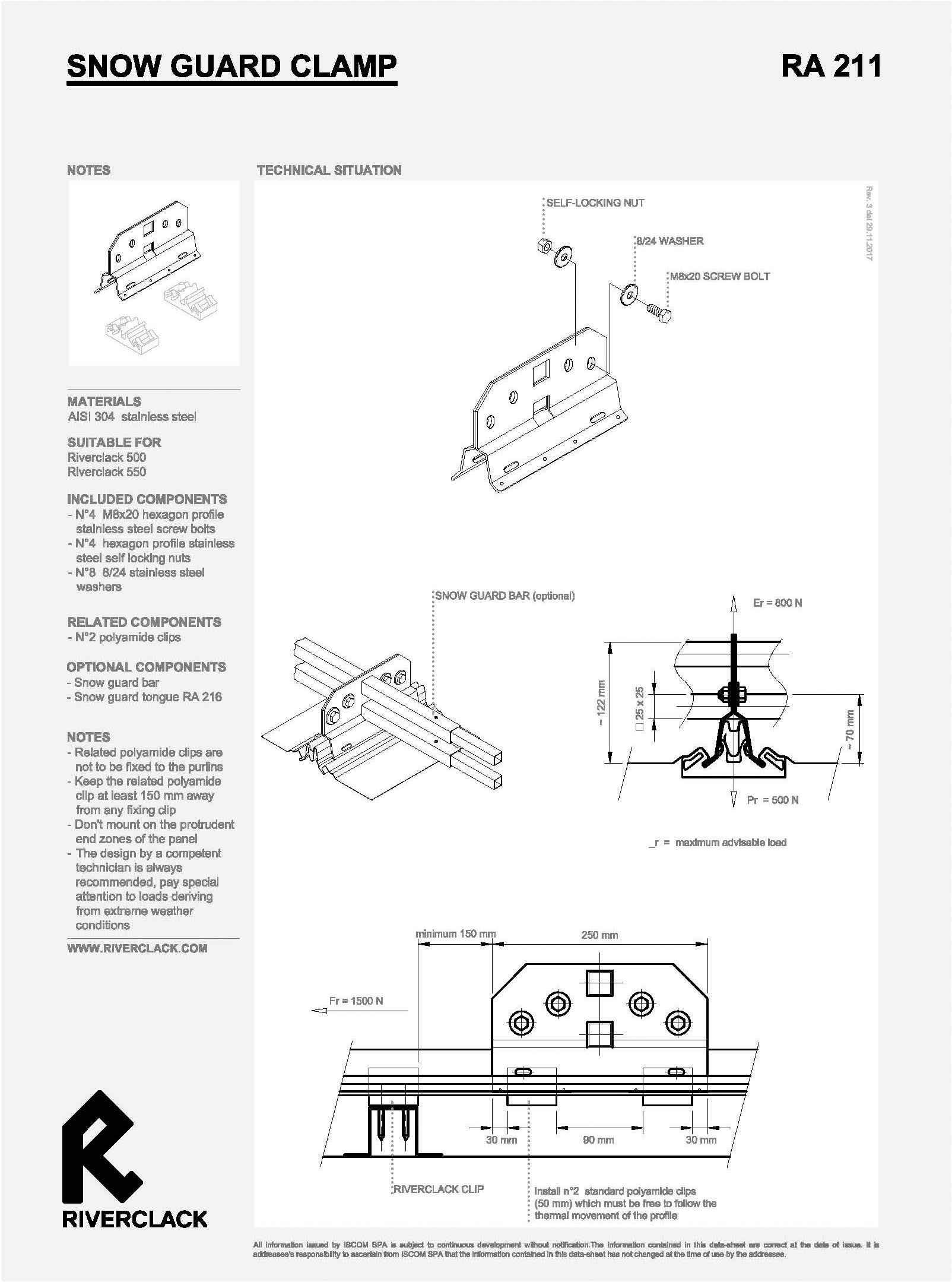

RA211

MATERIALS

• AISI 304 stainless steel

SUITABLE FOR

• Riverclack® 500
• Riverclack® 550

INCLUDED COMPONENTS

• N° 4 M8 x 20 hexagon profile stainless steel screw bolts
• N° 4 hexagon profile stainless steel self-locking nuts
• N° 8 8/24 stainless steel washers

RELATED COMPONENTS

• N° 2 polyamide clips

OPTIONAL COMPONENTS

• Snow guard bar
• Snow guard tongue RA 216

NOTES

• Correlated polyamide clips shall not be fixed to the purlins
• Keep the correlated polyamide clip at least 150 mm away from any fixing clip
• Installation can't be performed on the protruding end zones of the panel
• It is always highly recommended that the design is carried out by a competent technician, beware of loads caused by extreme weather conditions
