RA212

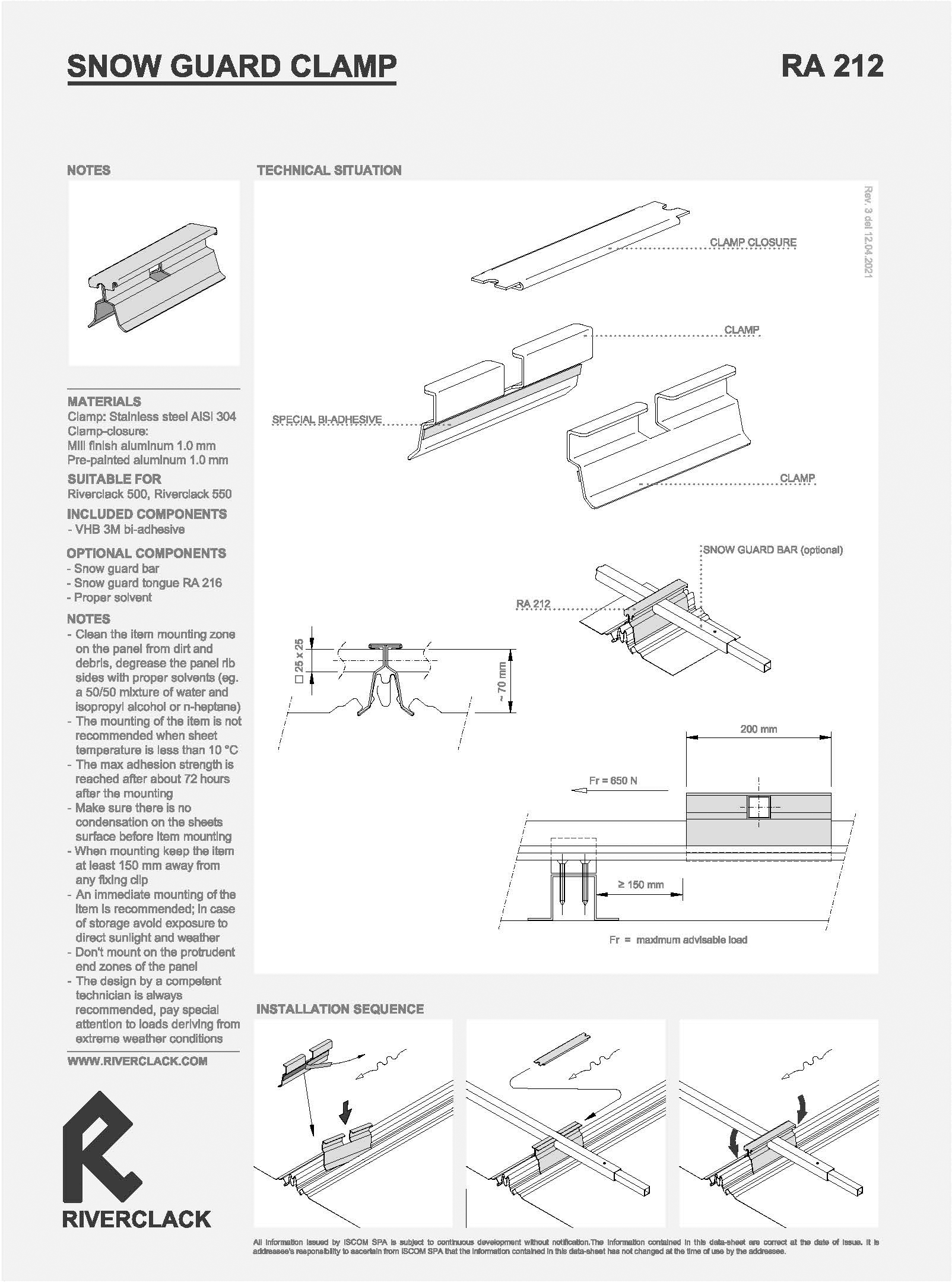

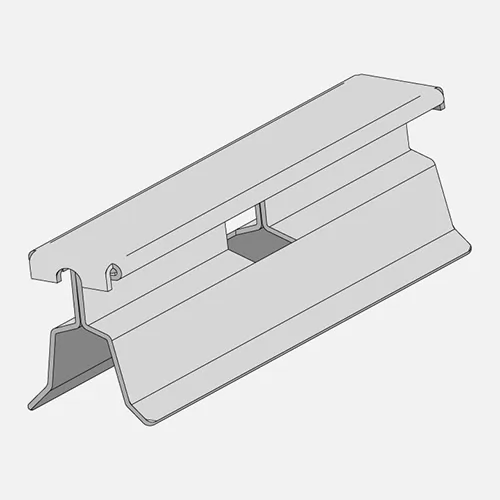

Snow Guard Clamp

RA212
RA212
Features

MATERIALS

  • Clamp:
    • Stainless steel AISI 304
  • Clamp closure:
    • Mill finish aluminum 1.0 mm
    • Pre-painted aluminum 1.0 mm

SUITABLE FOR

  • Riverclack® 500
  • Riverclack® 550

INCLUDED COMPONENTS

  • VHB 3M double-sided adhesive

OPTIONAL COMPONENTS

  • Snow guard bar
  • Snow guard tongue RA 216
  • Proper solvent

NOTES

  • Clean the attachment mounting zone on the panel from dirt and debris, degrease the panel rib sides with proper solvents (eg. a 50/50 mixture of water and isopropyl alcohol or n-heptane)
  • Attachment installation is not recommended when sheet temperature is lower than 10 °C
  • The max adhesion strength is reached after about 72 hours after installation
  • Make sure there is no condensation on the sheet surface before installation
  • When installing, keep the item at least 150 mm away from any fixing clip
  • It's recommended to quickly install the attachment; in case of storage avoid exposure to direct sunlight and the elements
  • Installation shall not be performed on the protruding end zones of the panel
  • It is always highly recommended that the design is carried out by a competent technician, beware of loads caused by extreme weather conditions
