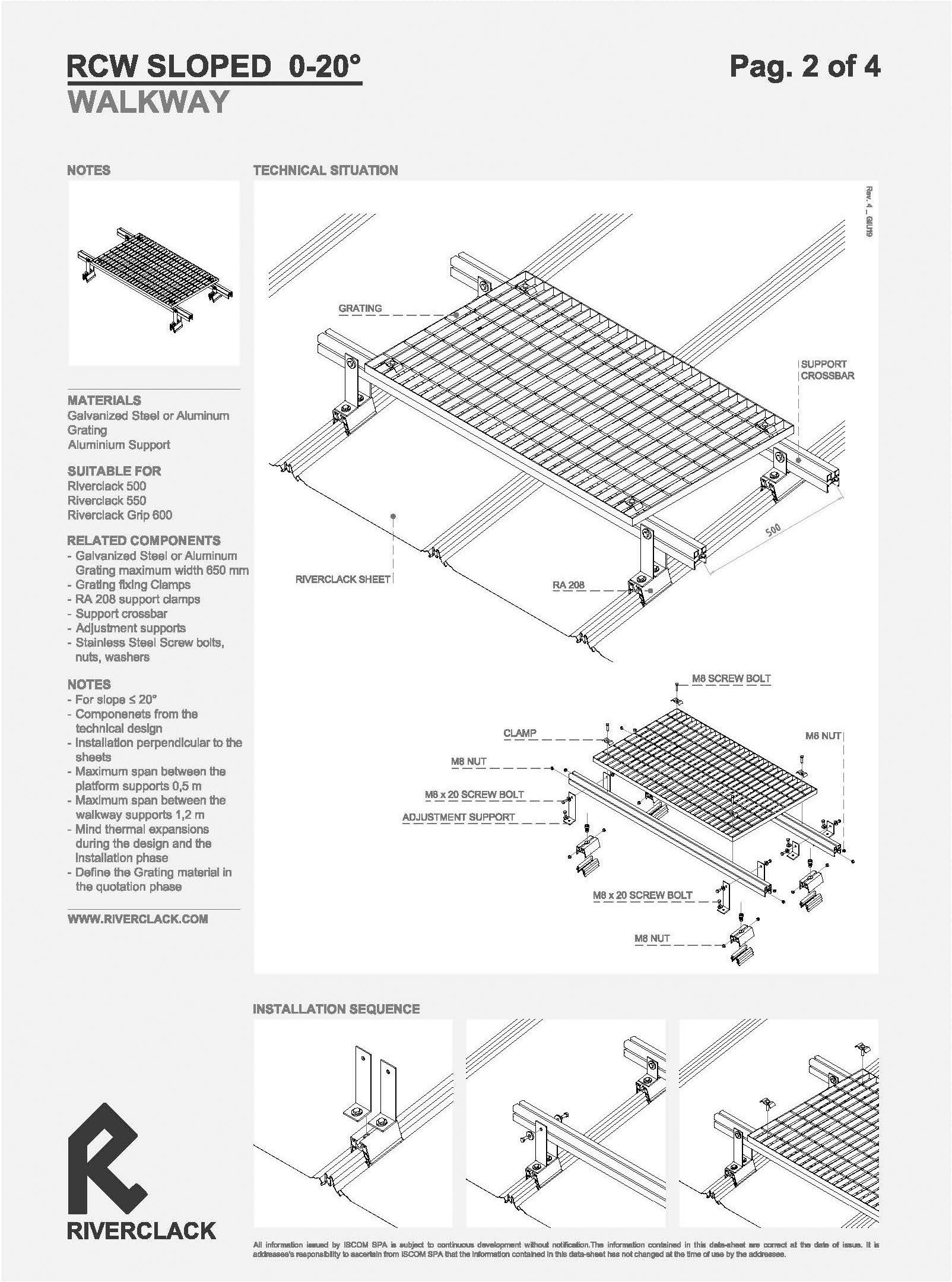

RCW SLOPED 0-20°

MATERIALS

• Galvanized steel or aluminum grating
• Aluminum support

SUITABLE FOR

• Riverclack® 500
• Riverclack® 550
• Riverclack® 600

INCLUDED COMPONENTS

• Galvanized steel or aluminum Grating with a maximum width of 650 mm
• Grating fixing clamps
• RA 208 support clamps
• Support crossbar
• Adjustment supports
• Stainless steel screw bolts, nuts, washers

NOTES

• The attachment can be applied on ≤ 20° sloped claddings
• The correlated components can vary depending on roof slope and spacing
• The amount and size of correlated elements depend on walkway design
• Walkway installation shall be performed perpendicularly to the sheets
• Maximum span of 0,5 m between the platform supports
• Maximum span of 1,2 m between the walkway supports
• Mind thermal expansions during the design and installation phase
• Define the grating material during the quotation phase
