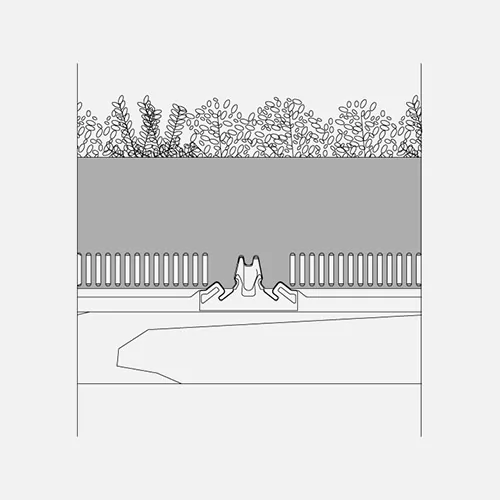

CONTAINMENT FLASHINGS

MATERIALS

• Mill finish aluminum

SUITABLE FOR

• Riverclack® 500

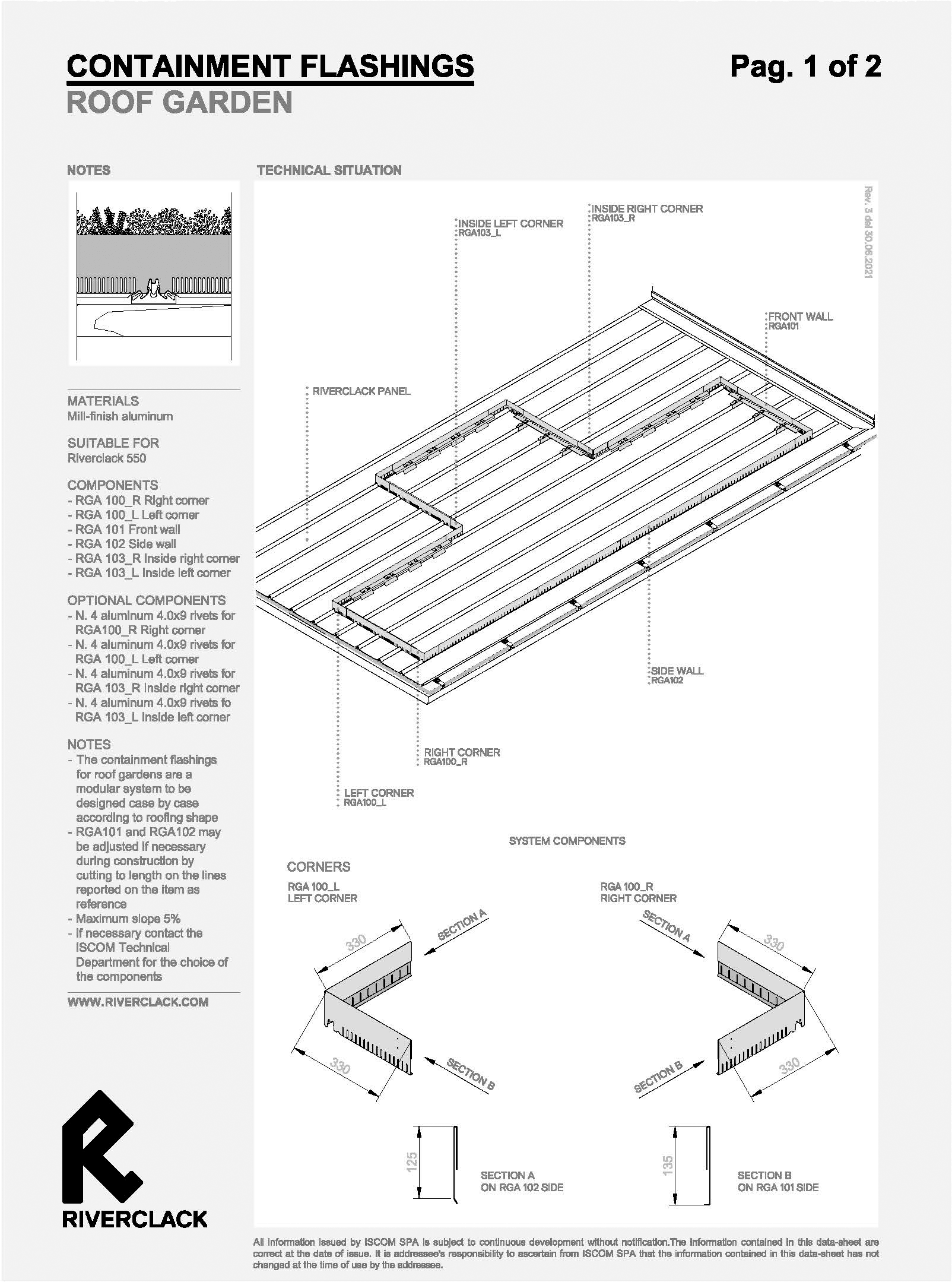

COMPONENTS

• RGA 100_R Right corner
• RGA 100_L Left corner
• RGA 101 Front wall
• RGA 102 Side wall
• RGA 103_R Inside right corner
• RGA 103_L Inside left corner

OPTIONAL COMPONENTS

• N° 4 aluminum 4.0 x 9 rivets for RGA 100_R Righi corner
• N° 4 aluminum 4.0 x 9 rivets for RGA 100_L Left corner
• N° 4 aluminum 4.0 x 9 rivets for RGA 103_R lnside right corner
• N° 4 aluminum 4.0 x 9 rivets for RGA 103_L lnside left corner

NOTES

• The containment flashings for roof gardens are a modular system to be designed case by case according to the roofing shape
• RGA 101 and RGA 102 may be adjusted if necessary, during construction by cutting to length on the lines reported on the attachment as reference
• Maximum cladding slope: 5%
• If necessary, contact the ISCOM Technical Department for choosing the components

MOUNTING INSTRUCTIONS

• Clean and degrease the panel ribs in the mounting zone of RSA 302
• Fix the RSA 302 items according to the design scheme, with the application of silicone between the plastic hooks of the attachment as well as the panel rib
• Put in place the front wall RGA 101 flashings by fixing them to the RSA302 plastic hooks, then fasten them with the TCEI 5,5x16 screws
• Fix the RSA 302 attachment on the rib to the side section of the roof garden according to the design scheme, apply silicone between the attachment plastic hooks and the panel rib
• Put in piace the side wall RGA 102 flashings and fix them in the plastic hooks of RSA302 attachments, then put the TCEI 5,5 x 16 screw with the attachment hole as reference
• Put in place the corners
• (RGA100_L and RA100_R) and fix them to RGA 101 and RGA 102 with rivets, after drilling core-holes using the attachment holes as reference
• lf necessary, contact ISCOM Technical Department
