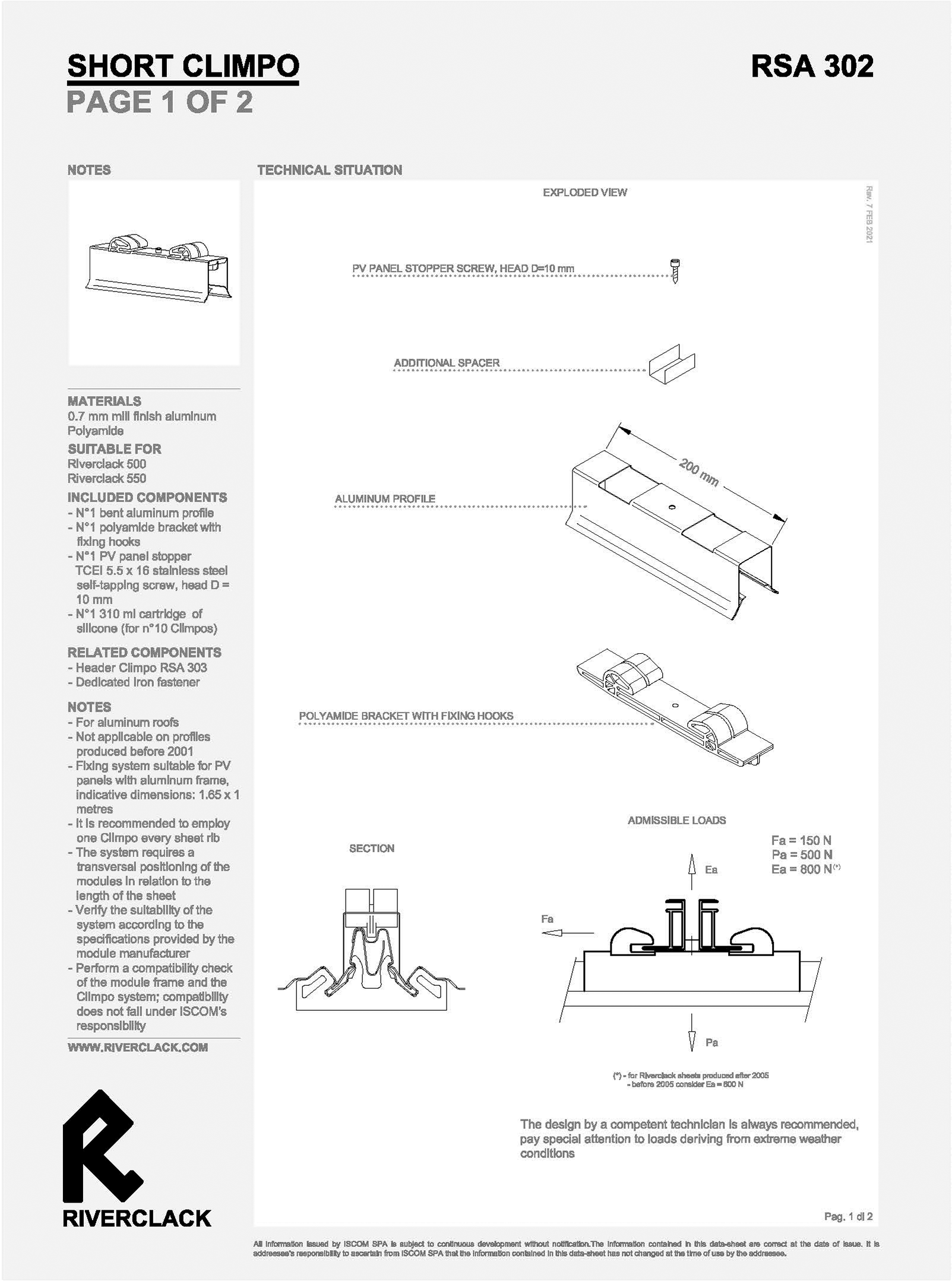

Fixing system suitable for PV panels with aluminum frame, indicative dimensions: 1.65 x 1 meters
It is recommended to employ one Climpo every sheet rib
The system requires transversal positioning of the modules in relation to sheet length
Verify the suitability of the system according to the specifications provided by the module manufacturer
Perform a compatibility check of the module frame and the Climpo system; compatibility does not fall under ISCOM's responsibility
Roof slope must be <10%, higher slopes require additional fasteners (contact ISCOM)
Climpo is not a snow guard. Snow loads must be handled with proper devices
The supplied stopper screw entails a distance of 10 mm between PV modules (screw head diameter)
The system can be applied to framed modules as shown in Tab.1, in case of different frames (Tab.2), request the proper spacer
The Short Header Climpo RSA 303 can be employed while laying the PV field for better architectural integration
For an easier installation on Riverclack ®sheet ribs, it is recommended the use of the dedicated iron fastener is recommended; request it at time of order
For assembly follow specific ISCOM instructions
Il is possible to install the item on curved panels with
>30 m radii. You may install the item even for <30 m and >5 m radii, but in this case, PV panels must be fixed on profiled interface elements, not on Climpo clamps directly
