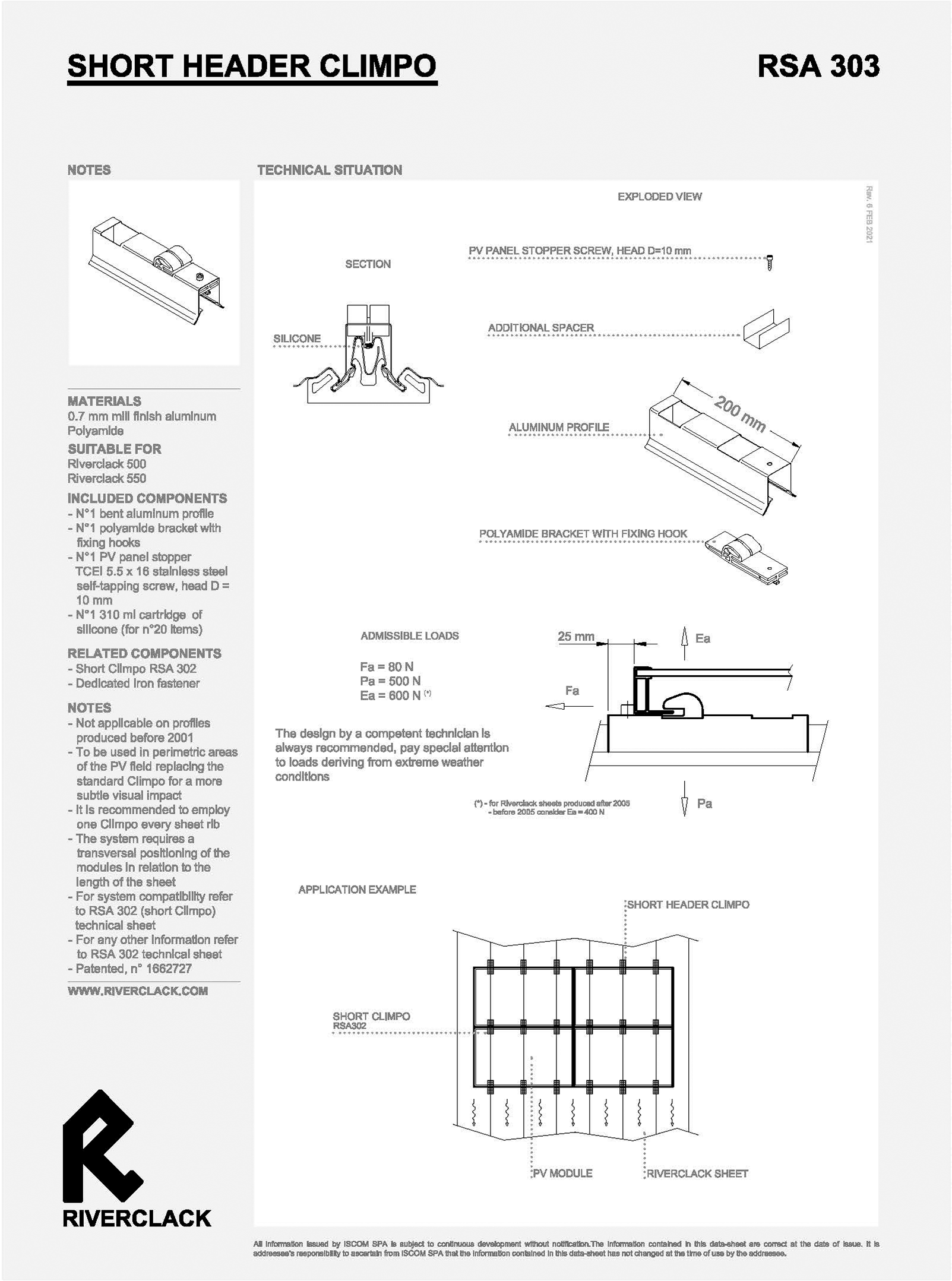

RSA303

MATERIALS

• 0.7 mm mill finish aluminum
• Polyamide

SUITABLE FOR

• Riverclack® 500
• Riverclack® 550

INCLUDED COMPONENTS

• N° 1 bent aluminum profile
• N° 1 polyamide bracket with fixing hooks
• N° 1 PV panel stopper TCEI 5.5 x 16 stainless steel self-tapping screw, head D = 10mm
• N° 1 310 ml silicone cartridge (for n° 20 Climpo accessories)

RELATED COMPONENTS

• Header Climpo RSA 302
• Dedicated iron fastener

NOTES

• Not applicable on profiles produced before 2001
• To be used in perimetric areas of the PV field replacing the standard Climpo for a more subtle visual impact
• It is recommended to employ one Climpo for each sheet rib
• The system requires transversal positioning of the modules in relation to sheet length
• For system compatibility refer to RSA 302 (short Climpo) technical sheet
• For any other information refer to RSA 302 technical sheet
• Patented, n° 1662727
